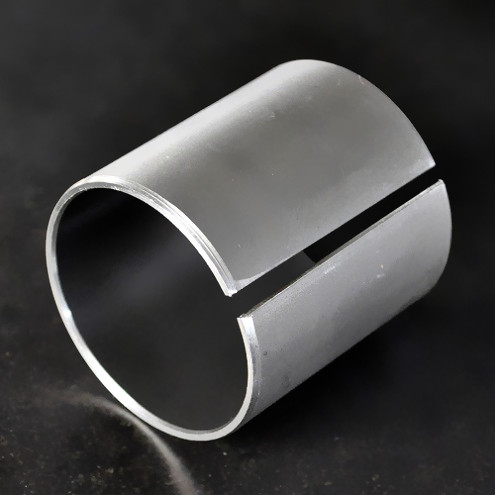

SF-1Steel Bronze Powder with PTFE Dry Bearings
Material: Steel+bronze+PTFE
- This material meets the demanding criteria for long life and trouble-free performance with or without lubrication.
- Automotive: tractors, combines, crop sprayers...
- Business machines: photocopy machines, typewriters, mail sorters...
- Home appliances: tape recorders, refrigerators, air conditioners...
| Tech. data |
|---|
| Max. load P |
Static |
250 N/mm² |
|
Friction coefficient |
0.03~0.20 |
| Very low speed |
140 N/mm² |
Max. speed V |
Dry running |
2 m/s |
| Rotating oscillating |
60 N/mm² |
Hydrodynamic |
>2 m/s |
| Max. PV Dry running |
Short-term operation |
3.6 N/mm²*m/s |
Thermal conductivity |
42 w(m*k)-1 |
| Continuous operation |
1.8 N/mm²*m/s |
Coefficient of thermal expansion |
11*10-6*k-1 |
| Temp. limit |
-195℃~+280℃ |
|

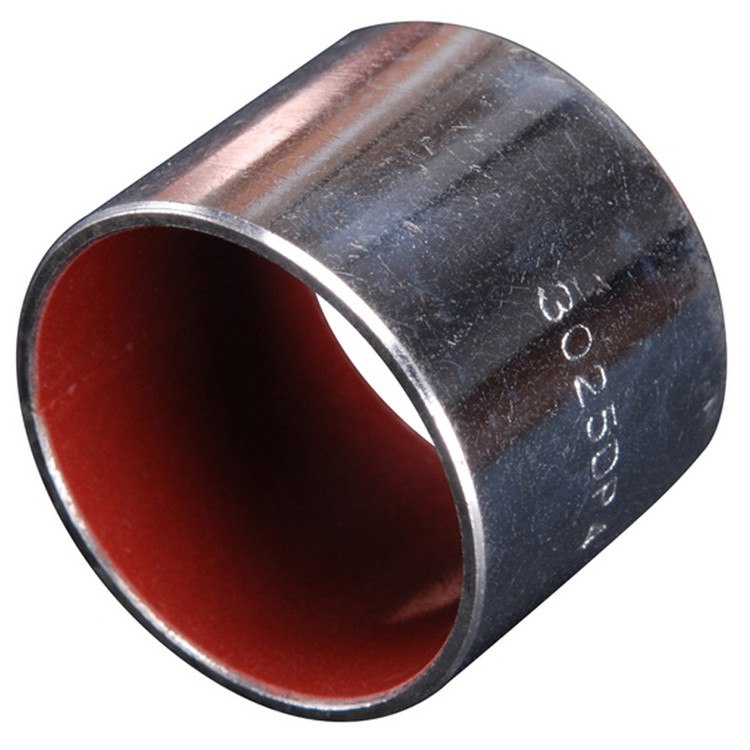

SF-1DSteel Bronze Powder with PTFE/Fibre Dry Bearings (Hydraulic Pump)
Material: Steel+bronze+PTFE
- PTFE/Lipophilic Polymer Polymer fibre mixture thickness 0.01~0.03mm. Lead-free bearing layer provides an excellent initial transfer film, which effectively coats the mating surfaces of the bearing assembly, forming an oxide type solid lubricant film.
- SF-1D is developed for high duty, oil lubricated, hydraulic applications...Automotive suspension struts, shock absorbers guide bushing, hydraulic cylinders, gear pumps, motors, axial and radial piston pumps & motors.
- SF-1D is designed mainly for using under lubricated conditions and it performs excellent wear resistance and low static/dynamic friction coefficient.
| Tech. Data |
|---|
| Max. Load P |
Static load |
250 N/mm² |
|
Temp. limit |
-195 ℃~+280 ℃ |
| Very low speed |
140 N/mm² |
Max. Speed V |
Dryrunning |
2.5 m/s |
Rotating load
Oscillating load |
60 N/mm² |
Oilrunning |
5 m/s |
| Max.PV Dryrunning |
Short-term |
3.6 N/mm²*m/s |
Thermal conductivity |
42w(m*k)-1 |
| Continuous |
1.8 N/mm²*m/s |
Coefficient of thermal expansion |
11*10-6*K-1 |
| max.PV Oilrunning |
30 N/mm²*m/s |
Friction coefficient |
Dry |
0.08~0.20 |
| Oil |
0.03~0.08 |
SF-1P Steel Bronze Powder with PTFE/Fibre Dry Bearings (Absorber)
Material: Steel+bronze+PTFE
- SF-1P had the same structure as SF-1,particularly suitable for intermittent operation,reciprocating or oscillating movements.
- Characterized by good lubrication and wear performance in the conditions of dry operation of oil.
- It is applied to shock absorber of automobile,motorcycles and various hydraulic motors and pneumatic elements etc.
| Tech. Data |
|---|
| Max. Load P |
Static load |
250 N/mm² |
|
Temp. limit |
-195 ℃~+270 ℃ |
| Very low speed |
140 N/mm² |
Max. Speed V |
Dry running |
2.5 m/s |
Rotating load
Oscillating load |
60 N/mm² |
Oil running |
5 m/s |
| Max.PV Dryrunning |
Short-term |
3.6 N/mm²*m/s |
Thermal conductivity |
42w(m*k)-1 |
| Continuous |
1.8 N/mm²*m/s |
| max.PV Oilrunning |
30 N/mm²*m/s |
Friction coefficient |
0.04~0.20 |
SF-1B Bronze Backed with PTFE Dry Bearings (Corrosion Resistance)
Material: bronze+PTFE
- Bronze backing, provides exceptionally high load carrying capacity, excellent heat dissipation and very good corrosion resistance.
- This material meets the demanding criteria for long life and trouble-free performance with or without lubricant, of high safety factor even.
- The bronze backing provides a high corrosion resistance, anti magnetic properties and a good thermal conductivity,
- The bearings are particularly appropriate for high temperature environment where no oil is efficient and the machine must be under successive long period working condition.
- The typical applications covered Steel metallurgy industry such as bushes for roller grooves of successive casting machines, cement grouting pumps and screw conveyors for cement and so on.
| Tech. Data |
| Max. Load P |
Static load |
250 N/mm² |
|
Temp. limit |
-195 ℃~+280 ℃ |
| Very low speed |
140 N/mm² |
Max. Speed V |
Dry running |
2.5 m/s |
Rotating load
Oscillating load |
60 N/mm² |
Oil running |
5 m/s |
| Max. PV Dry running |
Short-term |
3.6 N/mm²*m/s |
Thermal conductivity |
70 w(m*k)-1 |
| Continuous |
1.8 N/mm²*m/s |
Coefficient of thermal expansion |
11*10-6*K-1 |
| Max. PV |
30 N/mm²*m/s |
Friction coefficient |
0.03~0.20 |

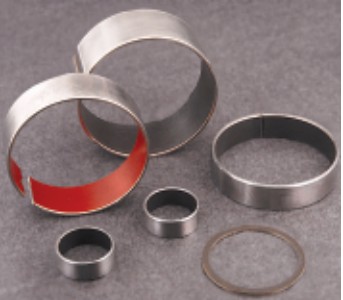

SF-1SMetal mesh with PTFE layer bearings (Sea Water)
Material: inox(AISI304/AISI316)+bronze+PTFE
- SF-1S consists of a stainless steel mesh shell laminated with compounded PTFE tape.
- This material structure enables the final parts to be lighter.
- The stainless steel provides good corrosion resistance.
- It is widely used in chemical industries like chemical valves,medical industries, food industries etc.
| Tech. Data |
| Max. Load P |
Static load |
250 N/mm² |
|
Temp. limit |
-195 ℃~+280 ℃ |
| Very low speed |
140 N/mm² |
Max. Speed V |
Dry running |
2 m/s |
Rotating load
Oscillating load |
60 N/mm² |
Oil running |
5 m/s |
| Max.PV Dry running |
Short-term |
3.6 N/mm²*m/s |
Thermal conductivity |
42 w(m*k)-1 |
| Continuous |
1.8 N/mm²*m/s |
Coefficient of thermal expansion |
15*10-6*K-1 |
| max.PV Oil running |
30 N/mm²*m/s |
Friction coefficient |
0.03~0.20 |
SF-1T Steel Bronze Powder with PTFE/Fibre Dry Bearings (Gear Pump)
Material: Steel+bronze+PTFE
- SF-1T has the same structures as SF-1,it is special for gear pump.
- It is a special formula product devised by high PV value operational mode conditions of gear oil pump.
- Characterized by low friction factor, stability, well wearing performance and impact resistance,it has been widely applied to gear pumps,radial piston pumps,radial piston pumps and vane pumps etc.
| Tech. Data |
| Max. Load P |
Static load |
250 N/mm² |
|
Temp. limit |
-195 ℃~+280 ℃ |
| Very low speed |
140 N/mm² |
Max. Speed V |
Dry running |
2.5 m/s |
Rotating load
Oscillating load |
60 N/mm² |
Oil running |
5 m/s |
| Max.PV Dryrunning |
Short-term |
4.3 N/mm²*m/s |
Thermal conductivity |
42w(m*k)-1 |
| Continuous |
2 N/mm²*m/s |
| max.PV Oilrunning |
40 N/mm²*m/s |
Friction coefficient |
0.03~0.20 |

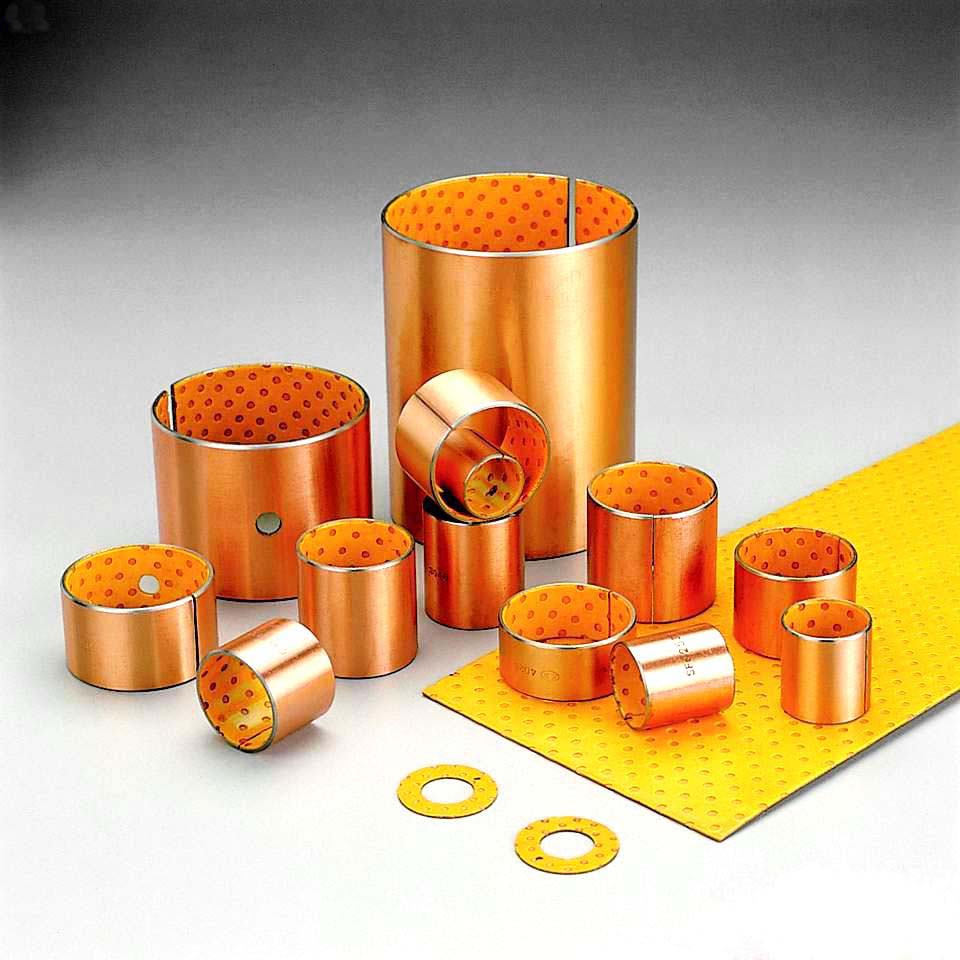

SF-2 Steel Bronze Powder with POM Marginal Bearings
Material: Steel+bronze+POM
- Suitable for rotating and oscillating movement, less maintenance requirements due to the long re-lubrication intervals, lower wear, lower susceptibility to edge loading, no absorption of water and therefore no swelling, good damping behaviors, good resistance to shock loads.
| Tech. Data |
| Max. Load P |
Static load |
250 N/mm² |
|
Temp. limit |
-40 ℃~+130 ℃ |
| Very low speed |
140 N/mm² |
Max. Speed V |
Pre-lubricated |
2 m/s |
Rotating load
Oscillating load |
70 N/mm² |
Continuous Grease |
2.8 m/s |
| Max.PV |
3 N/mm²*m/s |
Thermal conductivity |
50w(m*k)-1 |
| Coefficient of thermal expansion |
11*10-6K-1 |
Friction coefficient |
0.05~0.20 |
| Initial pre-lubrication at assembly is strongly recommended. |

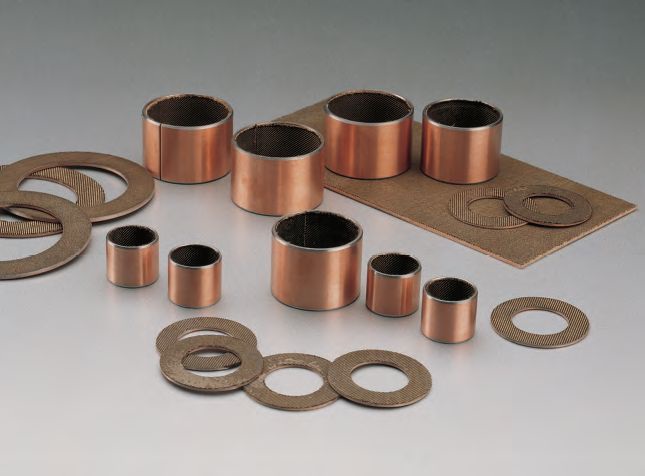

TEXSteel with PTFE Fibre Fabric Bearings (Higher Load)
Material: Steel+PTFE Fibre
- Suitable for rotating and oscillating movement, less maintenance requirements due to long re-lubrication intervals, lower wear, lower susceptibility to edge loading, no absorption of water and therefore no swelling, good damping behavior, good resistance to impact loads.
- It has longer service life under low speed and high load.
- This material is used in the equipments like suspension and auxiliary of agriculture, construction machines, cranes, hydraulic and mechanical jibs, ball butterfly and sluice valves, water pumps and chemical industries etc.
| Tech. Data |
| Max. Load P |
Static load |
350 N/mm² |
|
Temp. |
-50 ℃~+160 ℃ |
| Dynamic load |
180 N/mm² |
Friction coefficient |
0.05~0.20 |
| Max. Speed V |
0.5 m/s |
Thermal conductivity |
42w(m*k)-1 |
| Max.PV(Dry) |
Short-term |
3.6 N/mm²*m/s |
Coefficient of thermal expansion |
11*10-6*K-1 |
| Continuous |
1.8 N/mm²*m/s |
